✨ Quick Overview
This 2026 guide by Dmytro Shevchenko of Prime Garage Door Repair shifts the homeowner’s focus from aesthetics to engineering. While color and windows matter, the mechanical “type” dictates whether your door will actually fit your garage’s architectural constraints—such as low ceilings in Wauconda or short driveways in Mundelein.
💡 Key Takeaways
- Sectional is King: The go-to for 90% of suburban homes because it provides the best seal against Illinois winters and requires zero driveway clearance.
- Ceiling vs. Wall Space: Roll-up doors save your ceiling for storage or car lifts, while side-hinged doors are perfect for garages converted into home offices or gyms.
- The Problem Solvers: Slide-to-the-Side doors are the ultimate “wow” factor for garages with zero headroom, as they don’t rely on heavy ceiling tracks.
- Driveway Constraints: Tilt-up and Side-Hinged doors require “kick-out” or “swing-out” space, meaning you can’t park your car right up against the door during operation.
- Insulation Priority: For attached garages in Vernon Hills, Sectional doors remain the top recommendation due to their superior polyurethane thermal barriers.
📊 2026 Type Comparison Matrix
| Door Type | Best For | Clearance Needed | Insulation Level |
| Sectional | Most suburban homes | Ceiling space | High (R-12 to R-18) |
| Roll-Up | Storage & high ceilings | Wall space | Moderate |
| Side-Hinged | Pedestrian use & gyms | Driveway space | Moderate |
| Slide-to-Side | Low headroom garages | Side wall space | Moderate |
| Tilt-Up | Historic/Custom looks | Driveway space | Low to Moderate |
When you start looking at Garage Door Options, it’s easy to get distracted by colors and window designs. However, the most important decision you will make is the mechanical type. The “type” refers to how the door moves, where it stores when open, and how much space it requires. In 2026, as garages in Mundelein, Vernon Hills, and Wauconda evolve into multi-use spaces, choosing the right mechanism is the foundation of a successful renovation.
My name is Dmytro Shevchenko, and at Prime Garage Door Repair, we’ve seen how the right mechanical choice can solve architectural headaches. Whether you are dealing with a low ceiling in a Wauconda cottage or need maximum security for a high-end build in Vernon Hills, understanding these five categories is essential.
The Importance of Mechanical Choice
Selecting from the 5 types of garage doors isn’t just about preference; it’s about the physical constraints of your home. The type you choose affects:
- Headroom: How much space is left between the top of the door and the ceiling.
- Driveway Clearance: Whether you can park your car right up against the door.
- Automation Potential: How the door integrates with modern Types of Overhead Doors openers.
This guide works alongside our other specialized clusters like Residential Garage Door Types and Different Types of Garage Doors to give you a 360-degree view of the market in 2026.

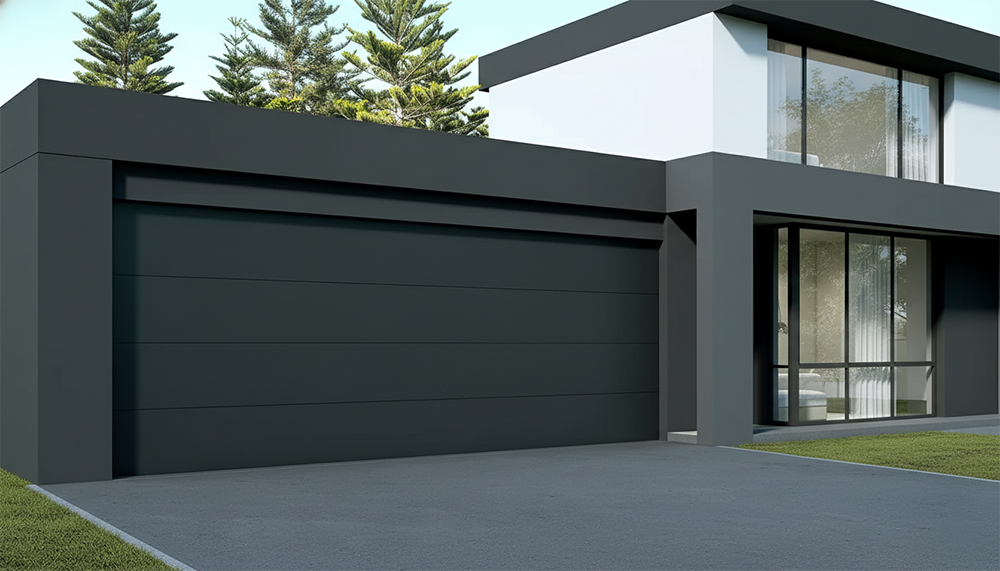

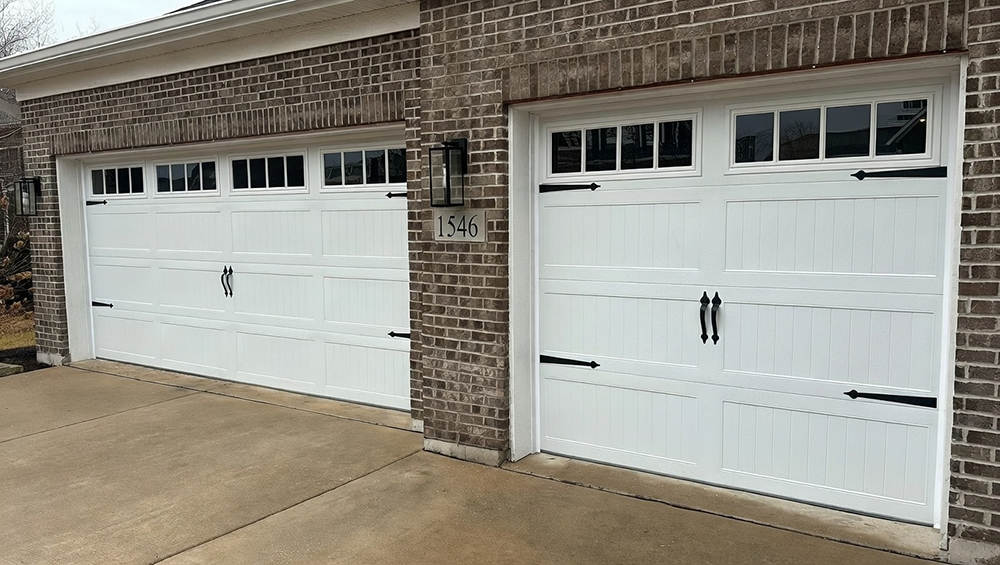

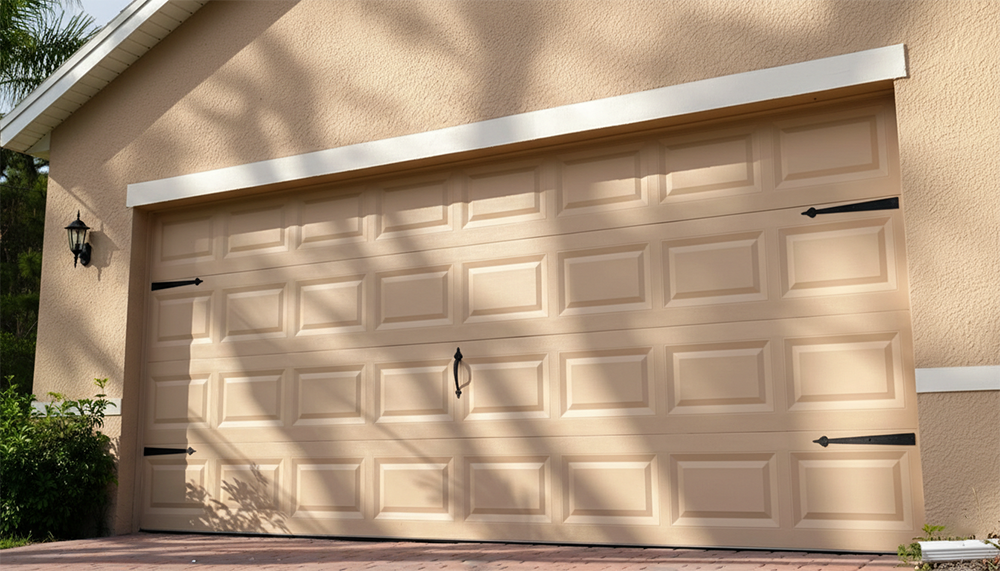

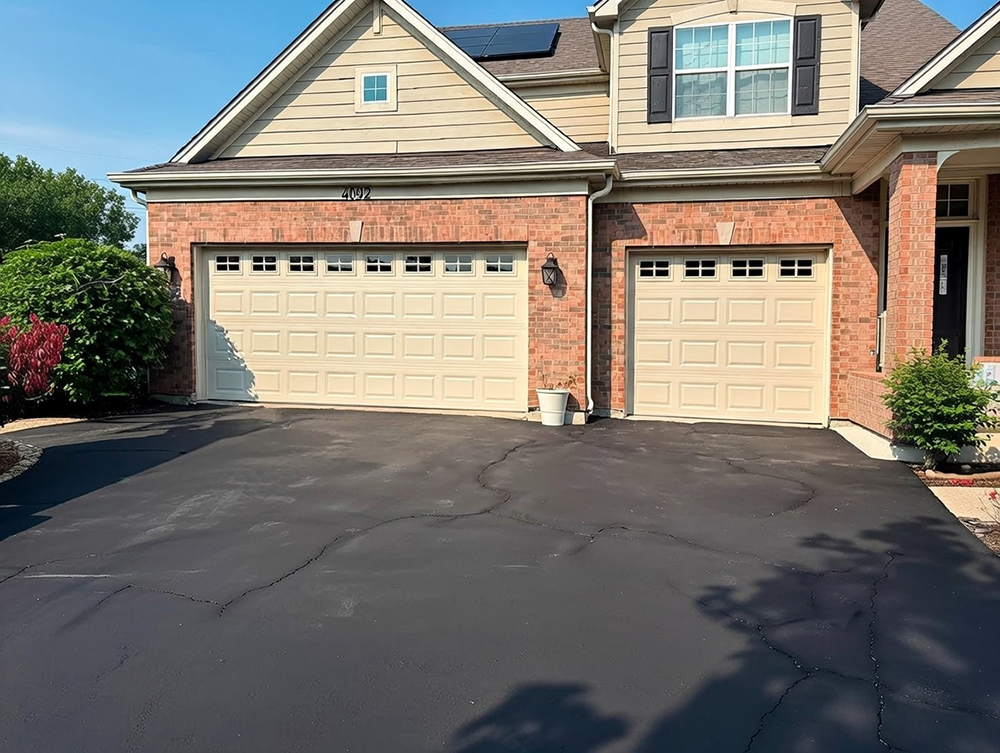

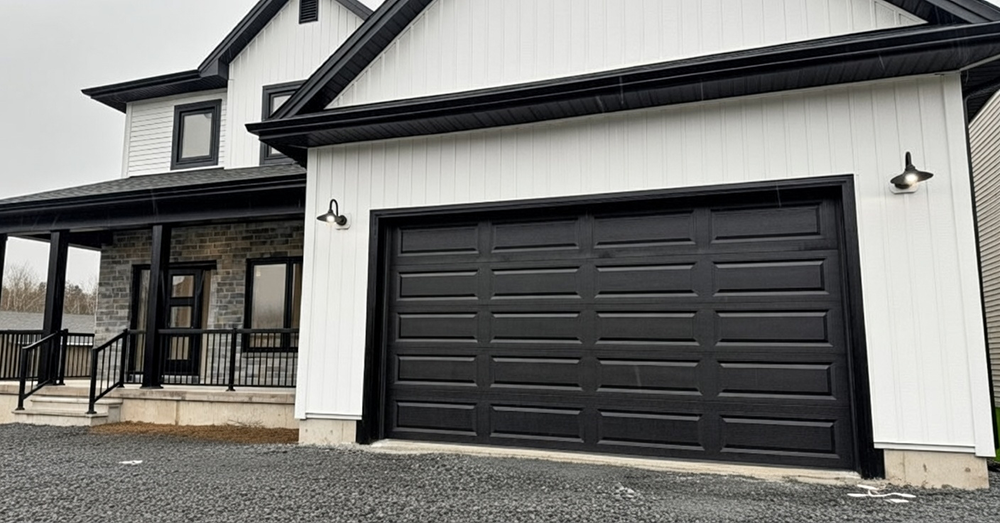

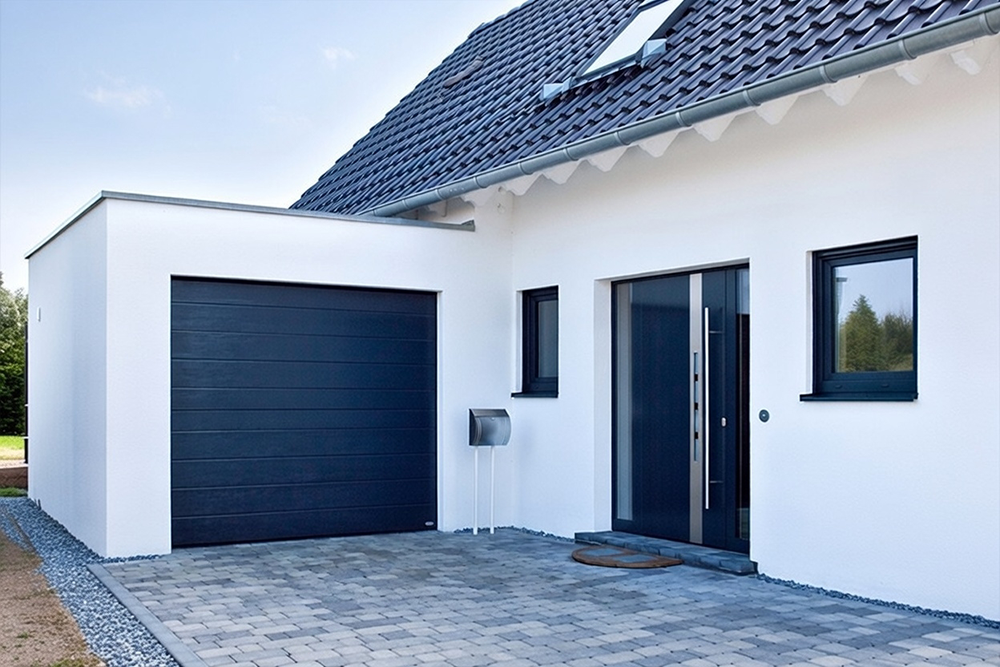

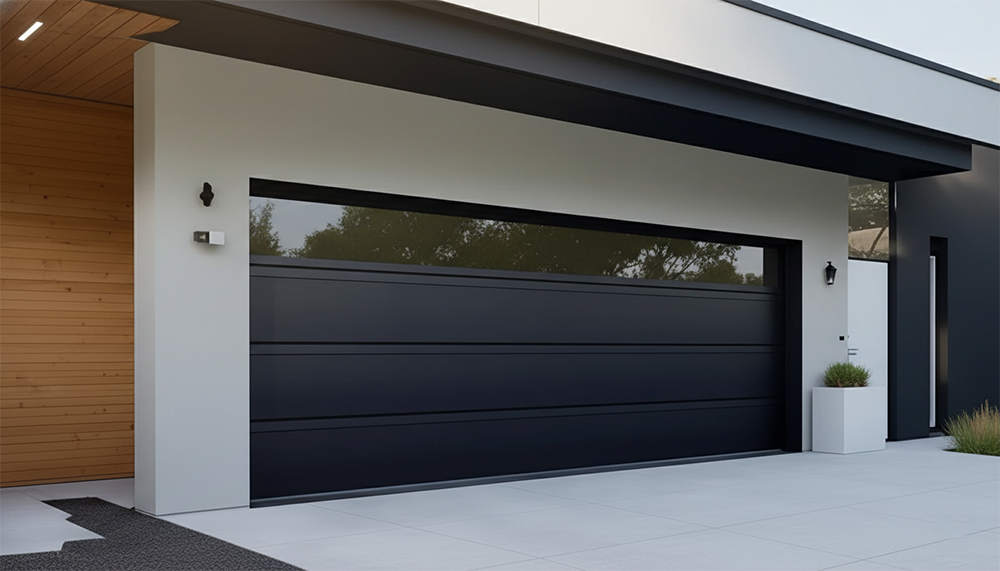

1. Sectional Garage Doors: The Universal Standard
If you drive through neighborhoods in Vernon Hills or Mundelein, the vast majority of the Garage Door Options you see will be sectional. This is the most popular of the 5 types of garage doors for a good reason: it offers the best balance of security, insulation, and ease of use for the average suburban home.
How the Mechanism Works
Sectional doors are made of several horizontal panels held together by hinges. As the door opens, the rollers on the edge of each panel follow a track system that curves from a vertical position (closed) to a horizontal position (open) flat against the garage ceiling.
Why It’s Ideal for Northwest Chicago
For homeowners in Vernon Hills, the sectional design is often the primary choice because of its superior weather sealing.
- Thermal Performance: Because sectional panels can be filled with thick polyurethane, they provide high R-values that are essential for protecting your vehicles and home from the Lake County winters.
- Space Efficiency: Since the door opens straight up, you can park your car right against the door in your driveway—a major plus for shorter driveways in Mundelein.
- Compatibility: This type is perfectly suited for almost all Types of Overhead Doors openers, including the newest smart-home integrated models for 2026.
Unlike more specialized Types of Garage Doors, the sectional model is easy to maintain and allows for individual panel replacement if a single section gets damaged, making it a “future-proof” investment for any growing household.

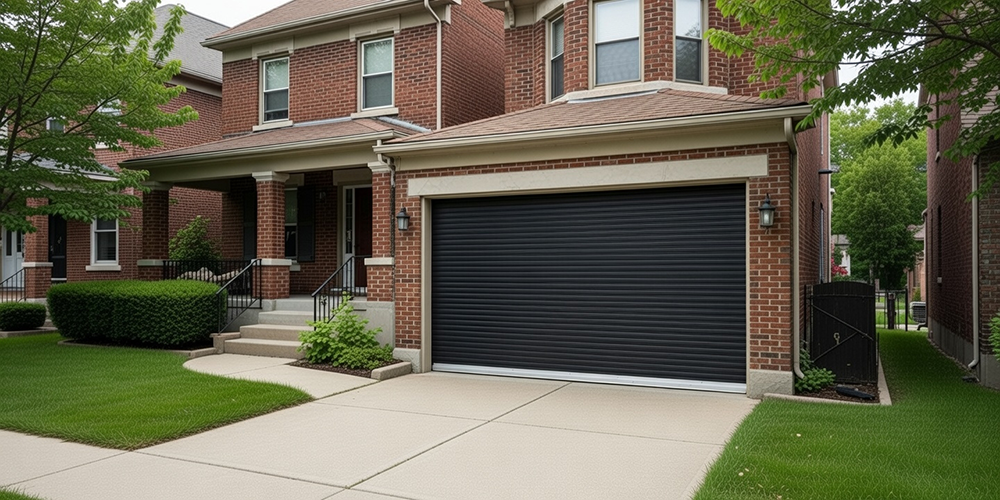

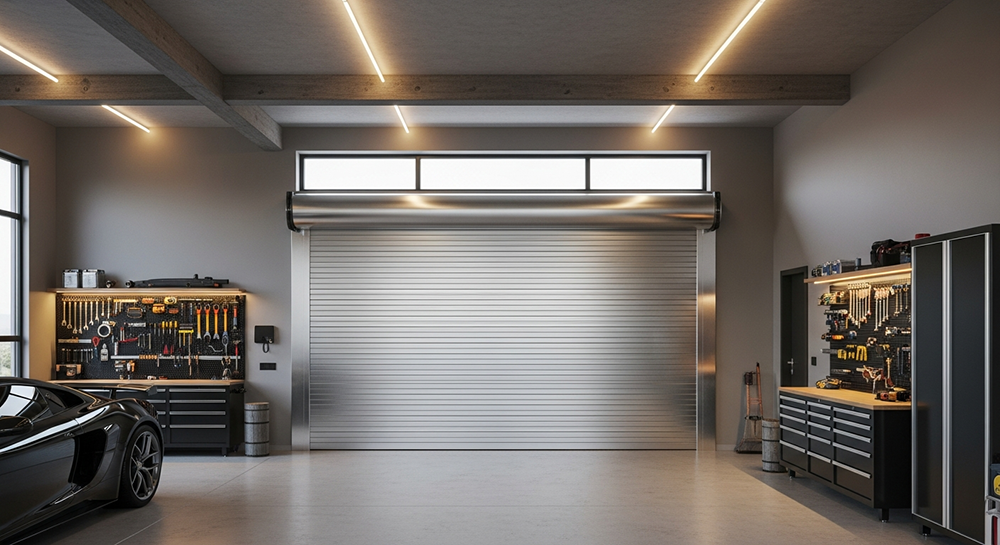

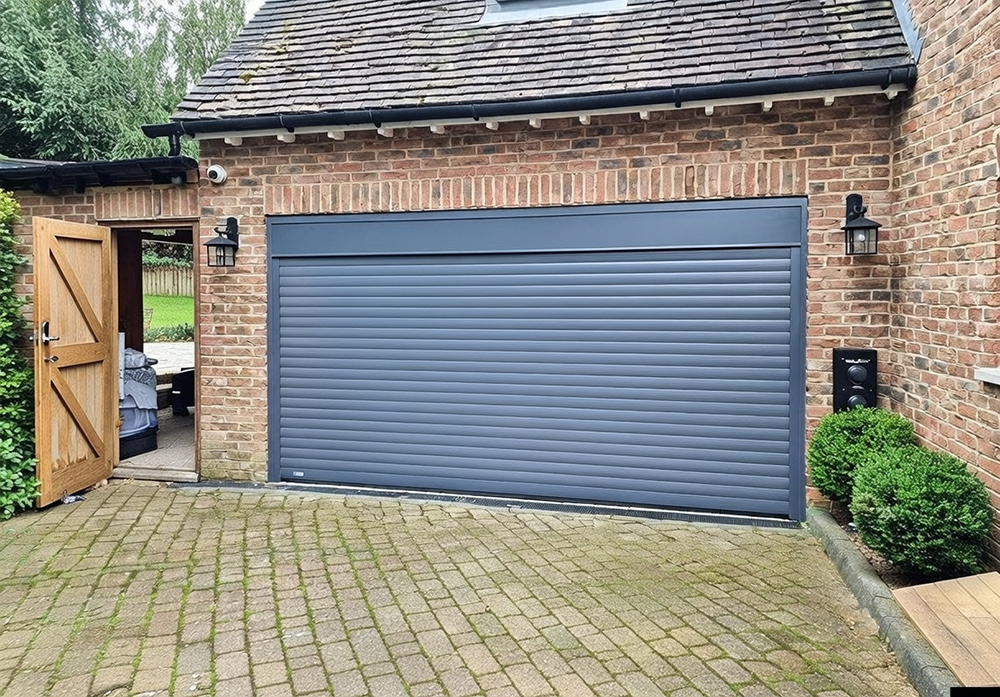

2. Roll-Up Garage Doors: The Industrial Powerhouse
While sectional doors are the standard, roll-up garage doors are the go-to choice for homeowners in Wauconda or Mundelein who need to maximize every square inch of their garage. Unlike sectional doors that slide back into the room, roll-up doors consist of thin, interlocking slats that coil into a compact drum located directly above the door opening.
When to Choose the Roll-Up Mechanism
This type is often categorized under Types of Overhead Doors because it stays completely out of the way once opened. In 2026, we see this style gaining traction in Vernon Hills for specific residential applications:
- High-Clearance Needs: If you own a tall SUV or want to install a car lift, the absence of overhead tracks allows you to utilize the full height of your ceiling.
- Heavy-Duty Security: Because they are built from smaller, tighter slats of steel or aluminum, they are exceptionally difficult to breach, providing peace of mind for high-value properties.
- Minimalist Aesthetic: When closed, the smooth, ribbed texture of a roll-up door provides a modern, industrial look that fits perfectly with the New Style Garage Doors trend.
Performance and Durability
Because these doors were originally designed for commercial use, they are built to handle high-frequency operation. For a busy household in the Northwest Chicago area, this means fewer service calls for cable or track issues. However, keep in mind that they often require specialized Types of Garage Doors maintenance to ensure the slats continue to coil smoothly without friction.
While they may not offer the extreme R-value of a thick sectional door, the 2026 models we install at Prime Garage Door Repair feature foam-filled slats that provide a reliable thermal barrier against the harsh winds of Wauconda.

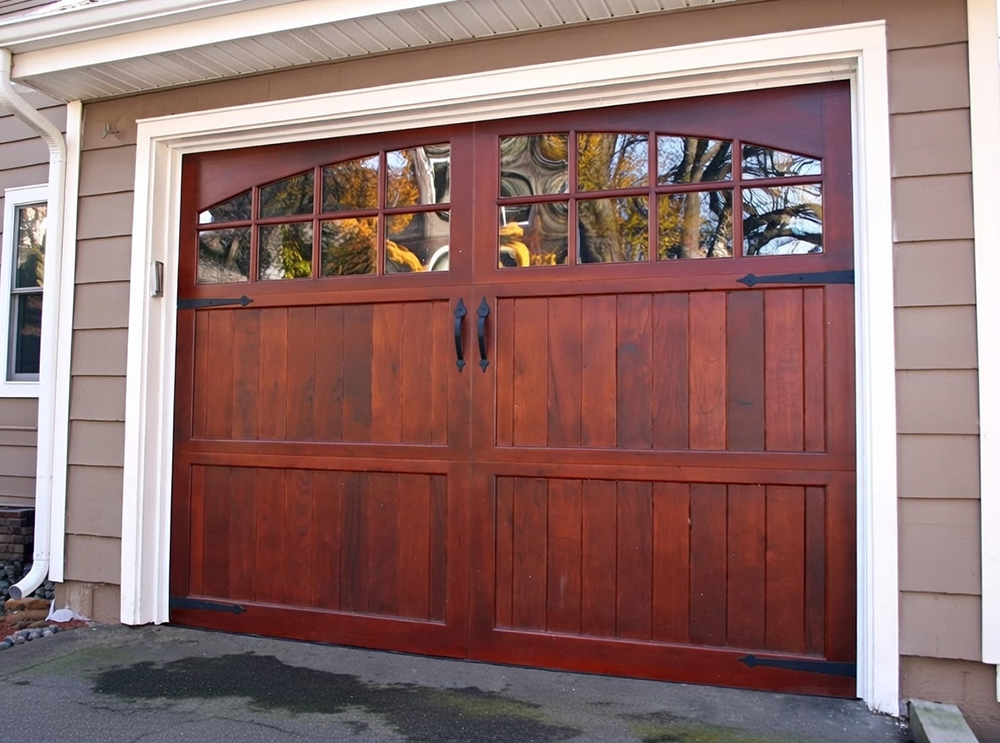

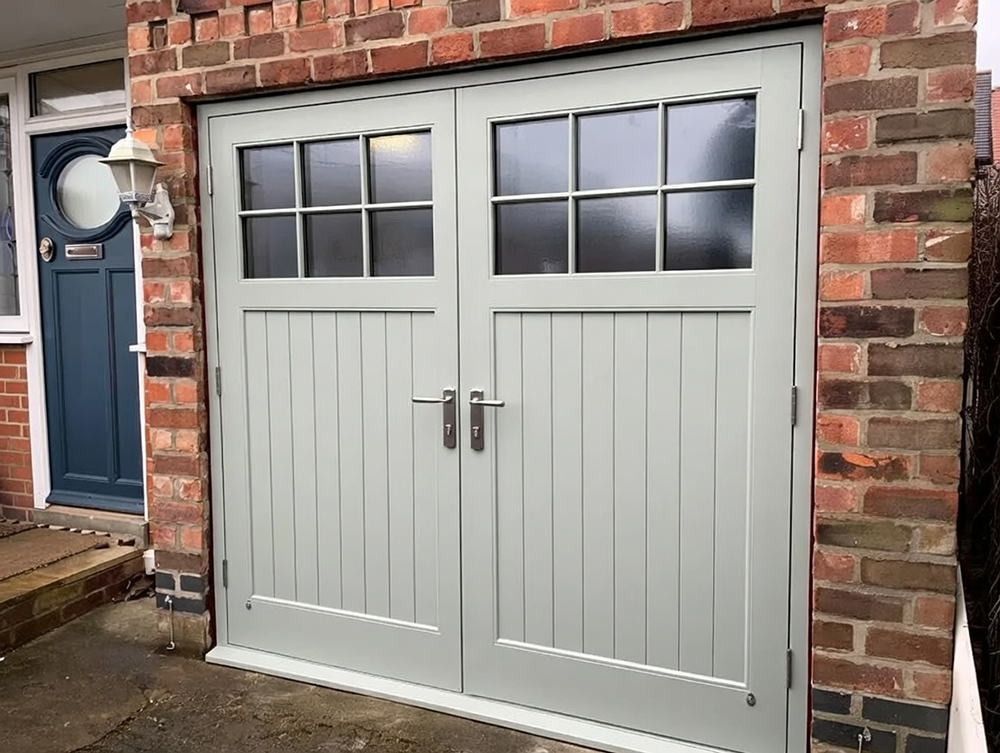

3. Side-Hinged Garage Doors: The “Swing-Out” Classic
If you live in an older home in Wauconda or have a detached garage in Mundelein, you may be familiar with the charm of side-hinged doors. These operate just like traditional barn doors, swinging outward from a hinged frame rather than moving upward into the garage space.
A Return to Traditional Craftsmanship
In 2026, many homeowners in Vernon Hills are choosing side-hinged models to achieve a high-end Style Garage Doors aesthetic that feels authentic to the architecture of their home. This type is particularly popular for garages that have been converted into:
- Home Offices: Since they don’t require overhead tracks, you can have a completely finished, high ceiling.
- Workshops & Gyms: If you are constantly walking in and out to grab a bike or a tool, you can simply open one “leaf” of the door without activating a motorized system.
Technical Benefits and Considerations
While they are among the most beautiful Different Types of Garage Doors, they do require specific considerations for the Illinois climate. Because they swing outward, you must keep your driveway clear of snow and debris in the winter to allow for a full range of motion—something to keep in mind during a typical Wauconda snowstorm.
From a technical standpoint, these are excellent Garage Door Options for garages with limited headroom. Since there is no internal hardware on the ceiling, you gain valuable storage space. When we install these in Vernon Hills, we often recommend heavy-duty seals and commercial-grade hinges to ensure they remain draft-free and secure against the strong winds common in Northwest Chicago.

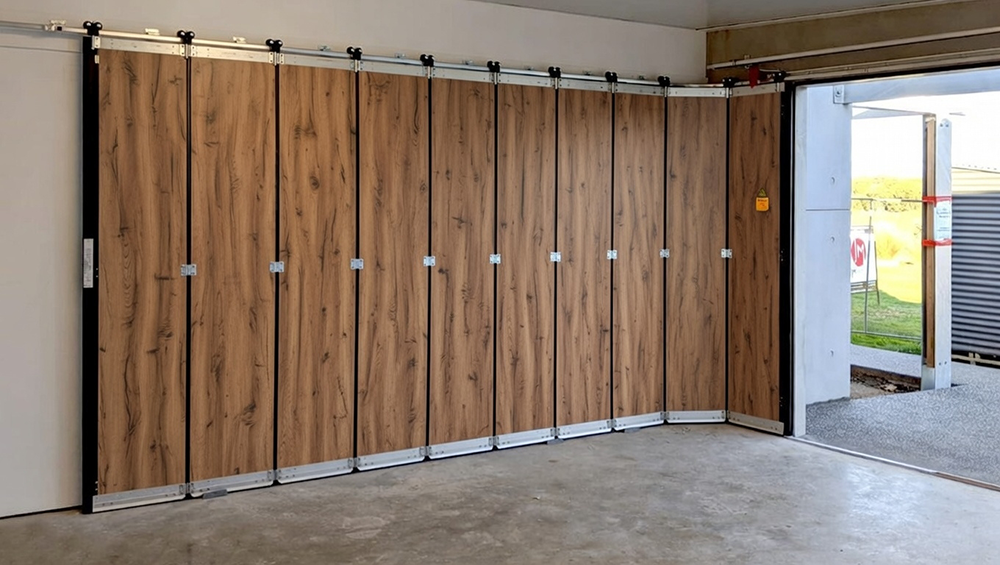

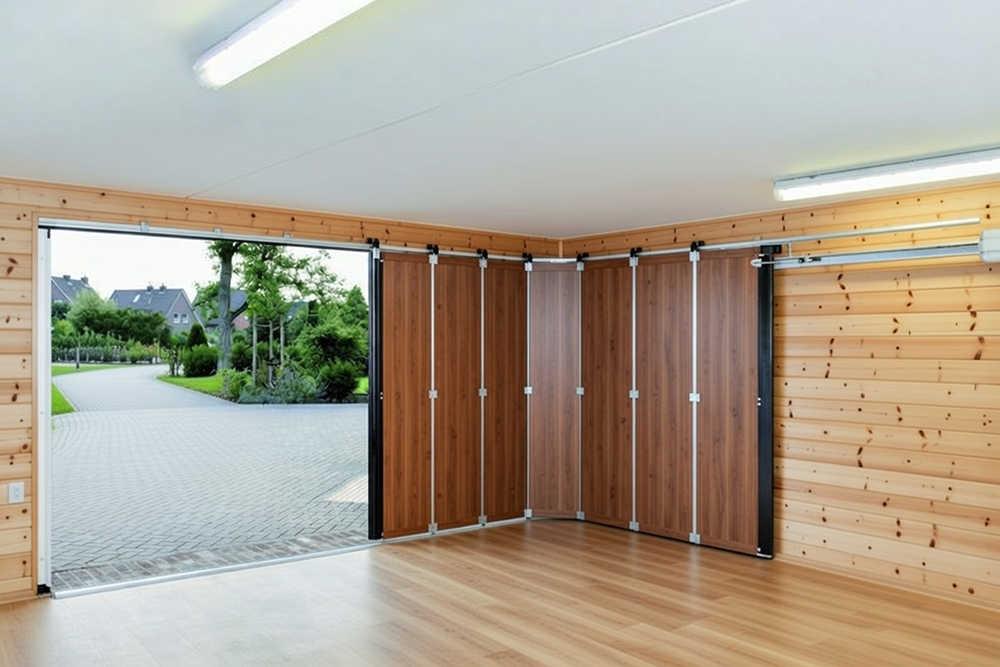

4. Slide-to-the-Side Garage Doors: The Curve-Following Innovator
The slide-to-the-side mechanism is perhaps the most unique of the 5 types of garage doors. Unlike standard Types of Overhead Doors that lift toward the ceiling, these doors operate by sliding horizontally to one side, following a track that curves along the interior wall of your garage.
Why It’s Gaining Popularity in Vernon Hills and Mundelein
We are seeing a growing number of homeowners in Vernon Hills and Mundelein choose this type for its high-end, custom appearance and functional flexibility.
- Zero Headroom Required: Since the door stays on the ground and follows the wall, it is the perfect solution for garages with very low ceilings or where the ceiling is used for heavy storage.
- Partial Opening Capability: You don’t need to open the entire door to let a person or a pet out. You can slide it open just a few feet, which is a great feature for busy families in Mundelein.
- Modern Aesthetic: This style fits perfectly into the New Style Garage Doors category, offering a sleek, sophisticated look that stands out from the traditional neighbors.
Technical Reliability in Illinois
From a service perspective at Prime Garage Door Repair, we find that slide-to-the-side doors are exceptionally reliable because they don’t rely on heavy tension springs to lift the door against gravity. This reduces the risk of the “snapped spring” emergency calls common in Wauconda during extreme cold snaps.
However, they do require a clean floor track to operate smoothly. If you are considering this among your Garage Door Options, we recommend a recessed floor track that stays clear of debris. While it’s a more specialized version of Different Types of Garage Doors, its convenience and “wow” factor make it a top-tier choice for modern home renovations in the Northwest Chicago area.

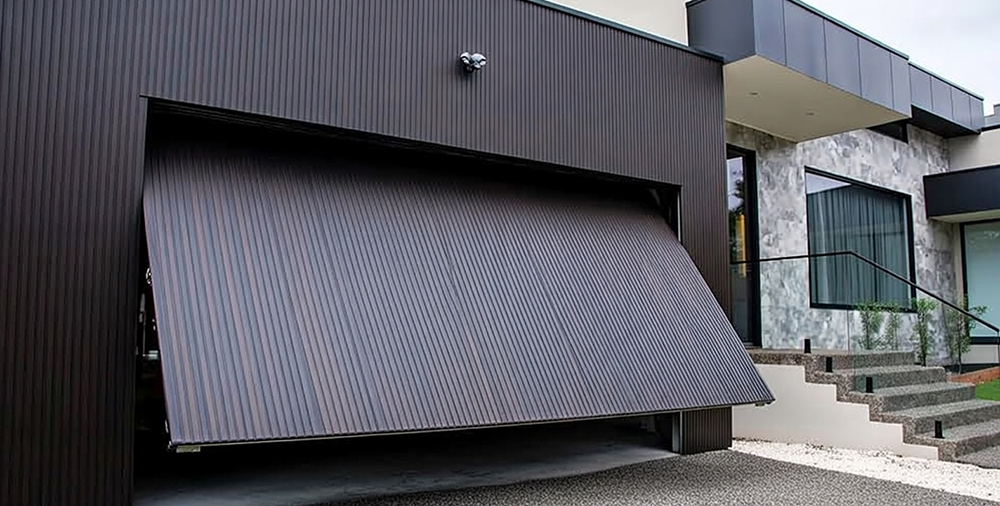

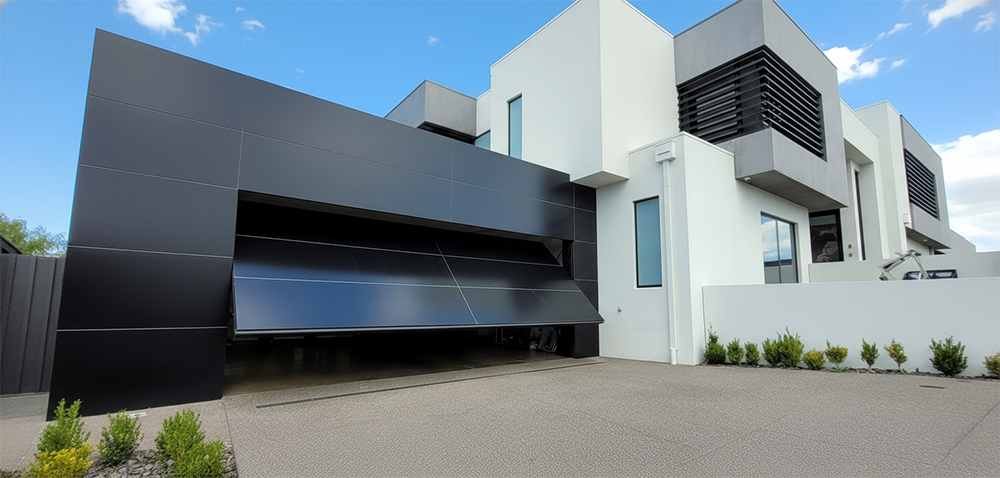

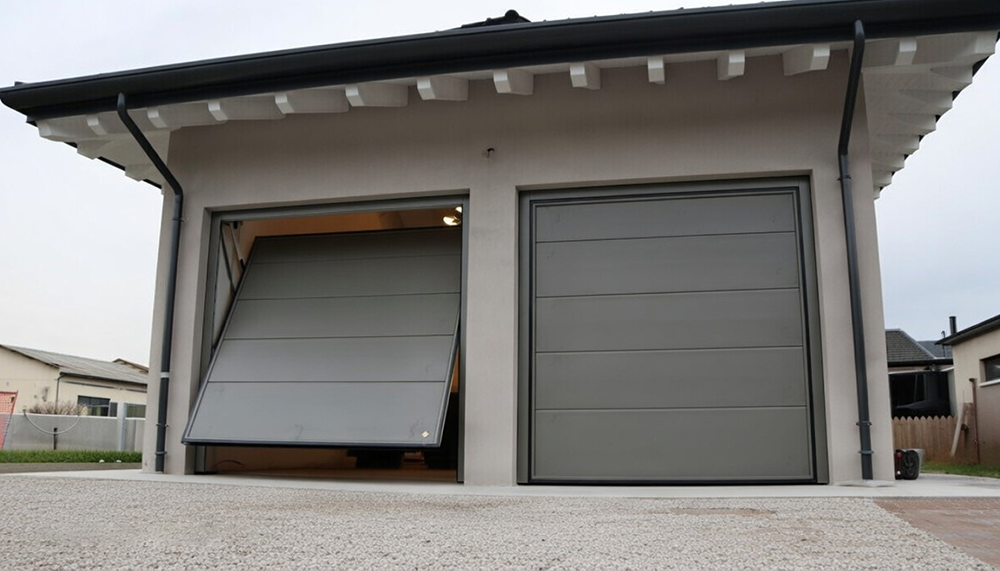

5. Tilt-Up (Up-and-Over) Garage Doors: The Vintage Choice
The final category in our list of the 5 types of garage doors is the tilt-up, also known as the “up-and-over” door. Unlike sectional doors that have multiple panels, a tilt-up door is a single, solid slab. While they were the standard for many decades, in 2026 they have transitioned into a specialized choice for specific architectural styles or budget-conscious retrofits in Wauconda and Mundelein.
Canopy vs. Retractable Mechanisms
When choosing a tilt-up door among your Garage Door Options, you will encounter two distinct mechanical sub-types:
- Tilt-Up Canopy: This is the simplest version. As the door opens, it pivots on a hinge and stays mostly outside, forming a “canopy” over your driveway. It is easy to install but can be difficult to automate with standard Types of Overhead Doors openers.
- Tilt-Up Retractable: This version is more common in modern Vernon Hills renovations. It uses a set of tracks that pull the entire single panel back into the garage. Because the door is fully tucked away, it is much easier to pair with a motorized opener.
Pros and Cons for Your Property
Homeowners in Mundelein often consider tilt-up doors for their unique aesthetic benefits. Since there are no horizontal breaks (unlike Different Types of Garage Doors that are sectional), you can have an uninterrupted design, such as a large mural or complex wood-grain patterns that look like a piece of art.
However, there is one major trade-off: swing-out space. Because the door kicks out at the bottom during the opening cycle, you cannot park your car directly against the door. If you have a short driveway in Vernon Hills or Wauconda, this might not be the most practical of the Types of Garage Doors for your daily needs.
Which of the 5 Types is Right for Your Northwest Chicago Home?
Choosing between the 5 types of garage doors ultimately depends on how you prioritize space, insulation, and aesthetics. In 2026, the “perfect” door is the one that balances these technical requirements with the specific architecture of your home in Mundelein, Vernon Hills, or Wauconda.
2026 Type Comparison Matrix
| Door Type | Best For | Clearance Needed | Insulation Level |
| Sectional | Most suburban homes | Ceiling space | High (R-12 to R-18) |
| Roll-Up | Storage & high ceilings | Wall space | Moderate |
| Side-Hinged | Pedestrian use & gyms | Driveway space | Moderate |
| Slide-to-the-Side | Low headroom garages | Side wall space | Moderate |
| Tilt-Up | Historic/Custom looks | Driveway space | Low to Moderate |
Final Expert Recommendations
- For Attached Garages: If your garage shares a wall with your living space in Vernon Hills, we almost always recommend a Sectional door. The superior sealing and insulation found in these Different Types of Garage Doors will significantly lower your energy bills.
- For Workshops and ADUs: If you’ve converted your garage in Mundelein into a home office or studio, look into Side-Hinged or Slide-to-the-Side options. These Garage Door Options allow you to keep your ceiling clear for lighting and equipment.
- For Maximum Durability: In high-wind areas near the lakes in Wauconda, a Roll-Up or a heavy-duty Sectional door offers the best structural integrity against the elements.
Ready to Upgrade Your Garage?
Understanding the mechanics of Types of Overhead Doors is the first step toward a smarter home. At Prime Garage Door Repair, we take the guesswork out of the process. Whether you need a standard replacement or a custom mechanical solution, our team provides the local expertise needed to ensure your door performs flawlessly in the Northwest Chicago climate.
Don’t settle for a door that doesn’t fit your lifestyle. From the latest New Style Garage Doors to traditional favorites, we are here to help you choose, install, and maintain the perfect entry point for your home.
Schedule Your Free Type Selection Consultation in Mundelein, Vernon Hills, or Wauconda Today
Explore our full library of guides, including our deep dive into Types of Garage Doors and Style Garage Doors for more inspiration.
Dmytro Shevchenko is the owner and lead technician at Prime Garage Door Repair, located at 25975 N Diamond Lake Rd, Unit 111, Mundelein, IL 60060. Known for his honest service and expert craftsmanship, he ensures every garage door operates safely and smoothly for families and companies across the Chicago suburbs.
