Garage Door Off-Track Repair and Reinforcement in Mundelein, IL
When a wide garage door starts to sag, bind, and slip off the track, it’s more than an inconvenience – it’s a serious safety risk. In this Mundelein, IL project, PrimeGDR was called to restore a misaligned, partially inoperable garage door and extend its service life with professional reinforcement.
Project Overview: Symptoms of a Failing Garage Door System
The homeowner in Mundelein noticed the door was no longer opening and closing smoothly. It would stick halfway, rub against the tracks, and visibly sag in the middle. These are classic signs of a wide, older door that lacks proper structural support and has worn mechanical components.
- Door frequently stuck halfway during operation
- Visible sagging and warping across the center panels
- Off-track movement and scraping noises along the vertical tracks
- Uneven gaps along the floor and jambs when the door was closed
Left unaddressed, this type of problem can lead to a complete derailment of the door, damage to the opener, and potential injury if the door comes down unexpectedly.

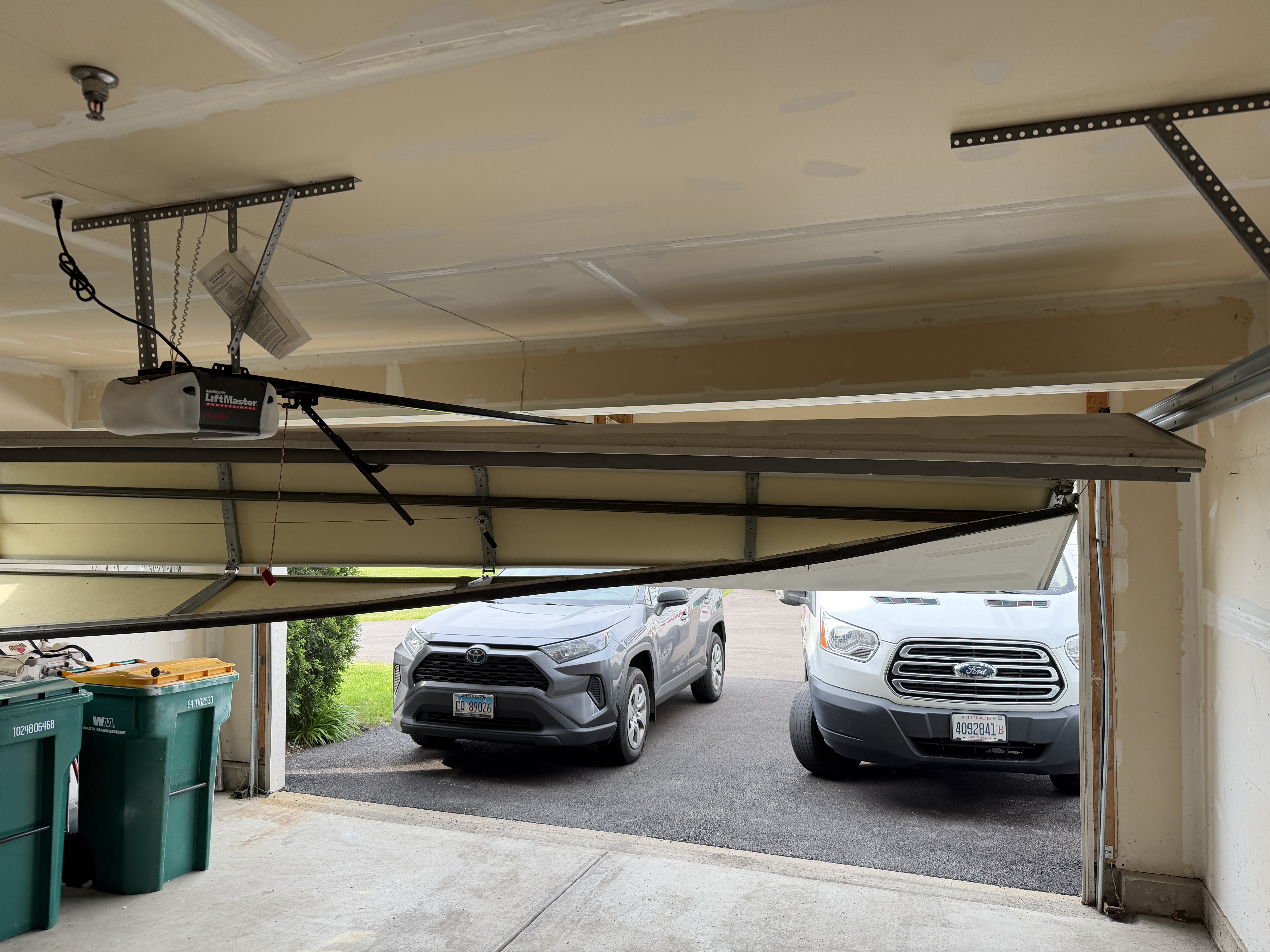

Step 1: Detailed Inspection and Alignment Diagnosis
Our lead technician began with a full mechanical and structural inspection of the door system:

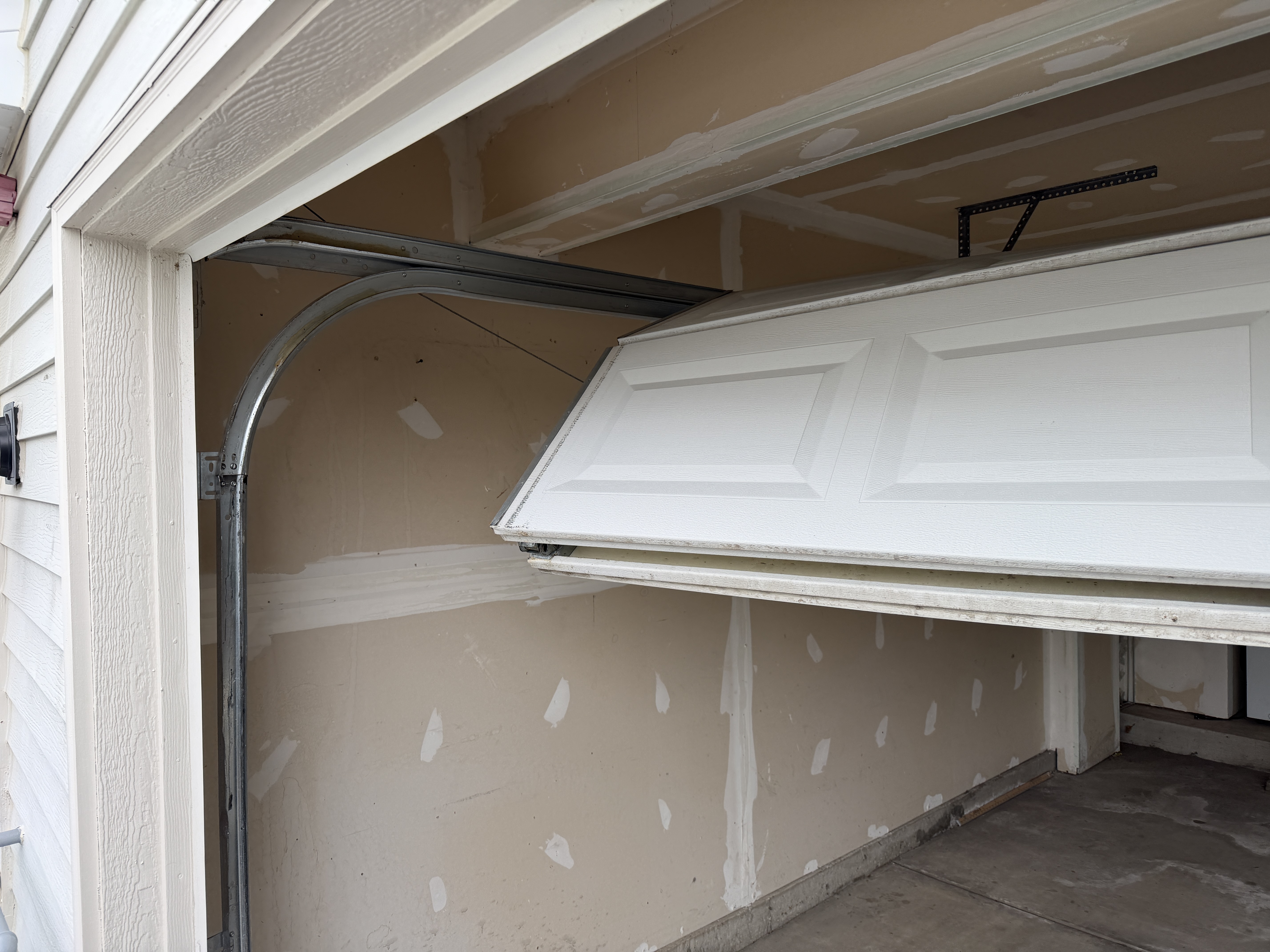

- Checked track alignment and mounting brackets for bends or loose fasteners
- Inspected rollers, hinges, and cables for wear, flat spots, and fraying
- Measured spring balance to see if the torsion system was correctly counterbalancing the door weight
- Assessed the door panels for bowing and loss of rigidity, especially at mid-span
The diagnosis confirmed that the door was slightly off track, several rollers and hinges were worn, and the panels were flexing under their own weight, contributing to the sagging and binding.
Step 2: Mechanical Repairs and Component Replacement
With the issues identified, PrimeGDR moved on to restoring the mechanical integrity of the system.
Track and Hardware Corrections
- Realigned and tightened vertical and horizontal tracks to factory-clearance tolerances
- Re-secured loose track brackets into solid framing to prevent flexing under load
- Replaced worn rollers that were causing rough, noisy travel
- Upgraded critical hinges and fasteners where metal fatigue was evident
These corrections ensured the door could travel smoothly without binding or jumping the track.

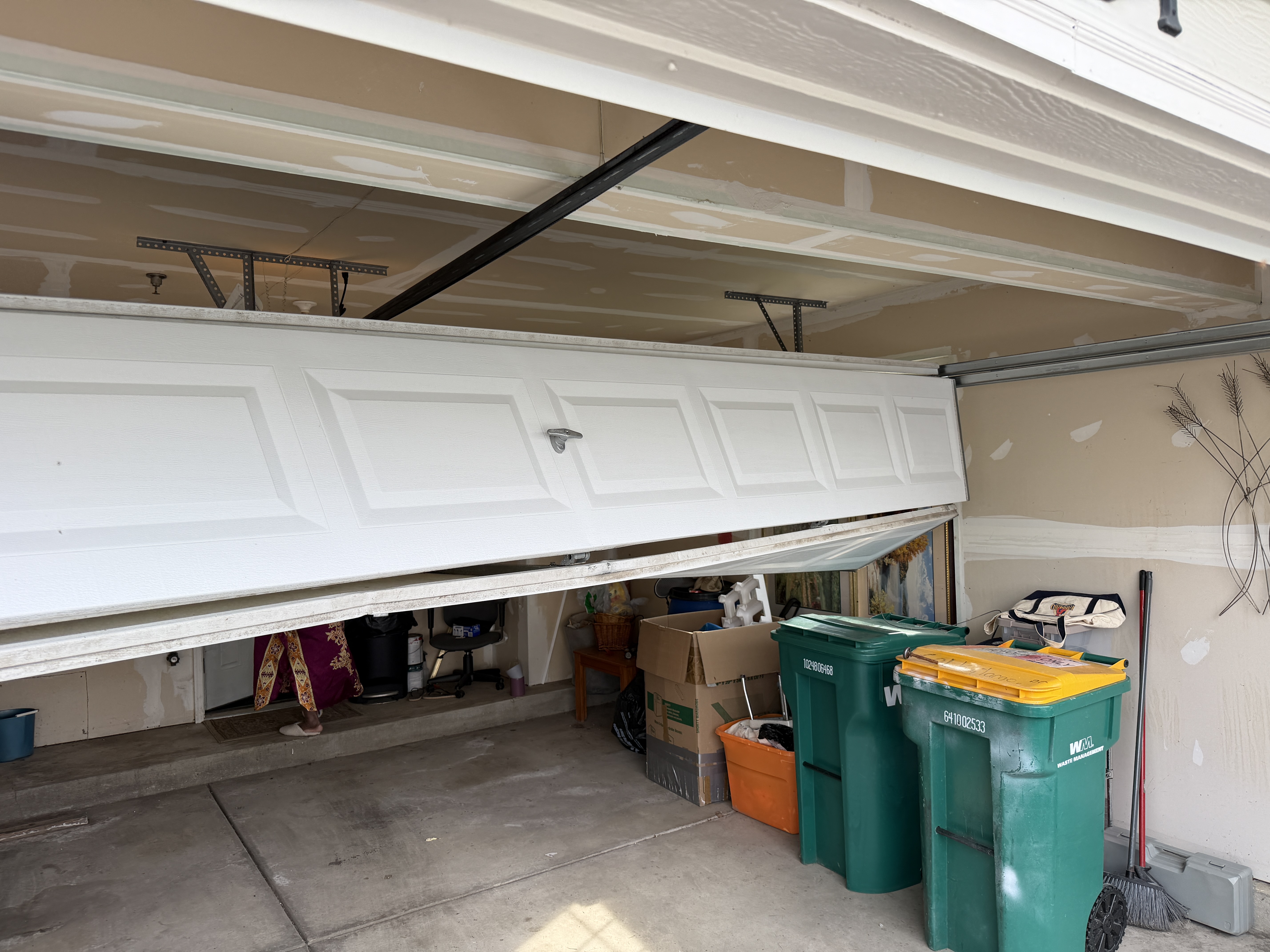

Step 3: Structural Reinforcement with Heavy-Duty Struts
Because this was a wider door, panel flex was a major contributor to the off-track behavior. To solve this, we installed heavy-duty horizontal reinforcement struts across the door panels.
These steel struts run the full width of the door and are fastened into the panel stiles, creating a rigid frame that resists bowing. Benefits include:
- Reduced sagging across the center of the door
- More even weight distribution on rollers and hinges
- Less stress on the torsion spring and opener
- Improved long-term durability of the door sections
For homeowners with double-wide doors in the North-West Chicago suburbs like Mundelein, this type of reinforcement is one of the most effective ways to prevent recurring off-track issues.
Step 4: System Rebalancing and Safety Optimization
Once the door was structurally sound and running true in the tracks, we rebalanced and fine-tuned the entire system.
- Adjusted torsion spring tension so the door could be lifted manually with minimal effort
- Verified cable alignment on the drums to prevent uneven lifting
- Lubricated all moving parts – rollers, hinges, bearings, and springs – with professional-grade garage door lubricant
- Tested and adjusted opener force settings to match the newly balanced door
- Checked and aligned safety photo eyes to ensure reliable reversal on obstruction

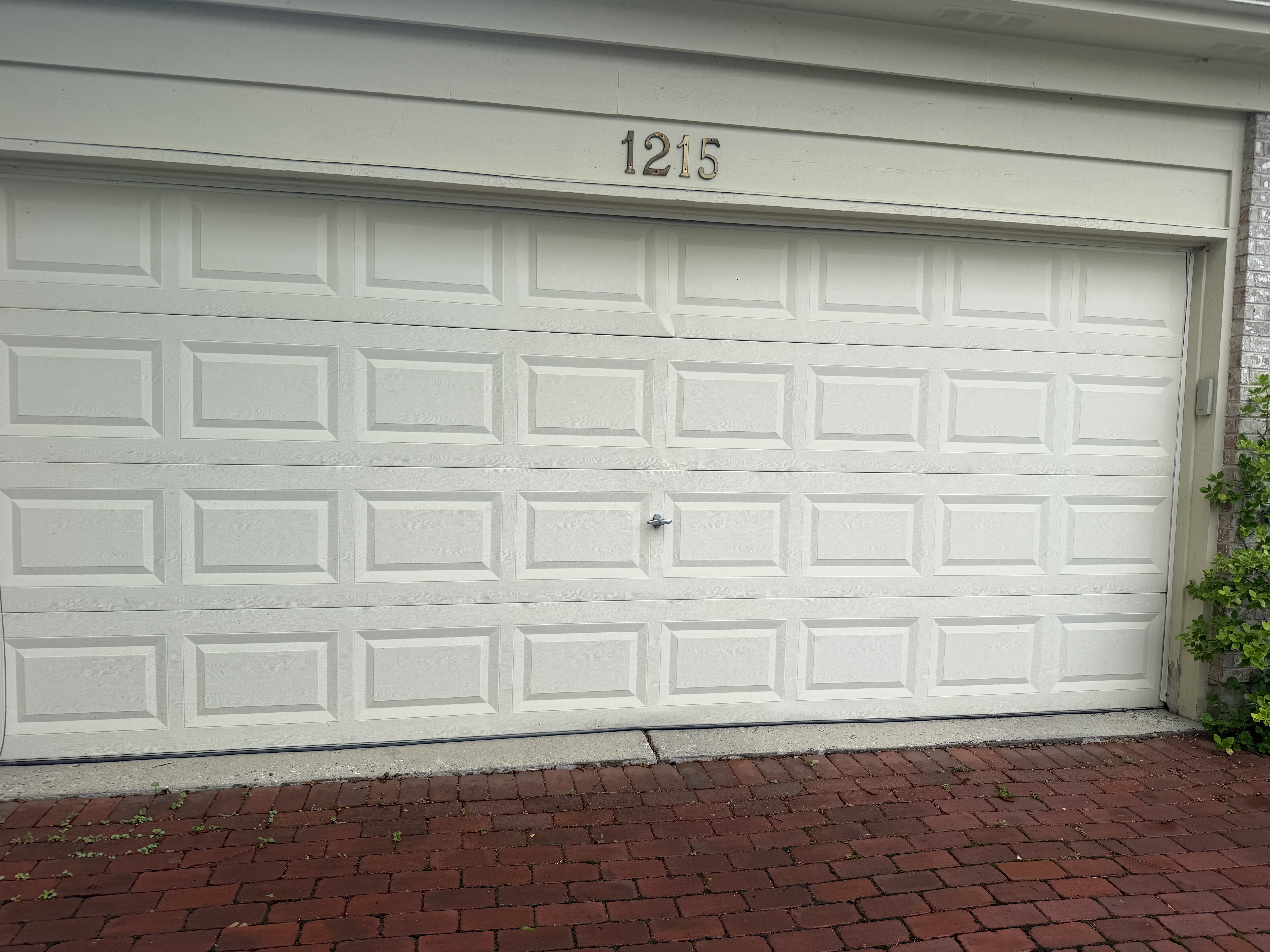

Results: A Smooth, Safe, and Longer-Lasting Garage Door
After PrimeGDR completed the off-track repair and reinforcement in Mundelein, the homeowner gained:
- A smooth, quiet-operating garage door that no longer sticks or binds
- Eliminated sagging and warping thanks to heavy-duty horizontal struts
- A properly balanced system that is easier on the opener and safer to operate manually
- Improved safety performance with fully tested sensors and force settings
- Extended service life of the existing door without immediate replacement
For homeowners across North-West Chicago and suburbs like Mundelein, a misaligned or off-track garage door doesn’t always mean full replacement. With expert diagnostics, structural reinforcement, and precise balancing, PrimeGDR can often restore your existing door to safe, reliable operation and help you get more years out of your system.
If your garage door is sagging, coming off track, or struggling to open and close, contact PrimeGDR for a professional inspection and repair tailored to your door’s condition.
